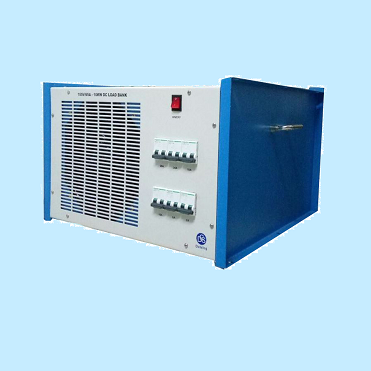

DC Resistive Load Bank



Resistive Load 155V/65A

  • Specifically designed to discharge the Batteries.
  • Input Voltage: 155V DC.
  • Load Current: 65A Programmable in steps of 20A,10A, 3A, 2A.
  • Load Step resolution: 2A Step resolution.
  • Cooling: Forced Air cooling from front and air exhaust from back side of the panel.
  • Indicators: Voltage, Current.
  • Load Elements:High Power wire wound, silicon coated resistive loads elements .
  • Load selection: Through heavy duty DC MCB’S.
  • Termination: All load wire terminals brought to one side of the panel with proper insulation.
  • 230V AC Auxiliary Supply
  • IP 21 Protection grade
